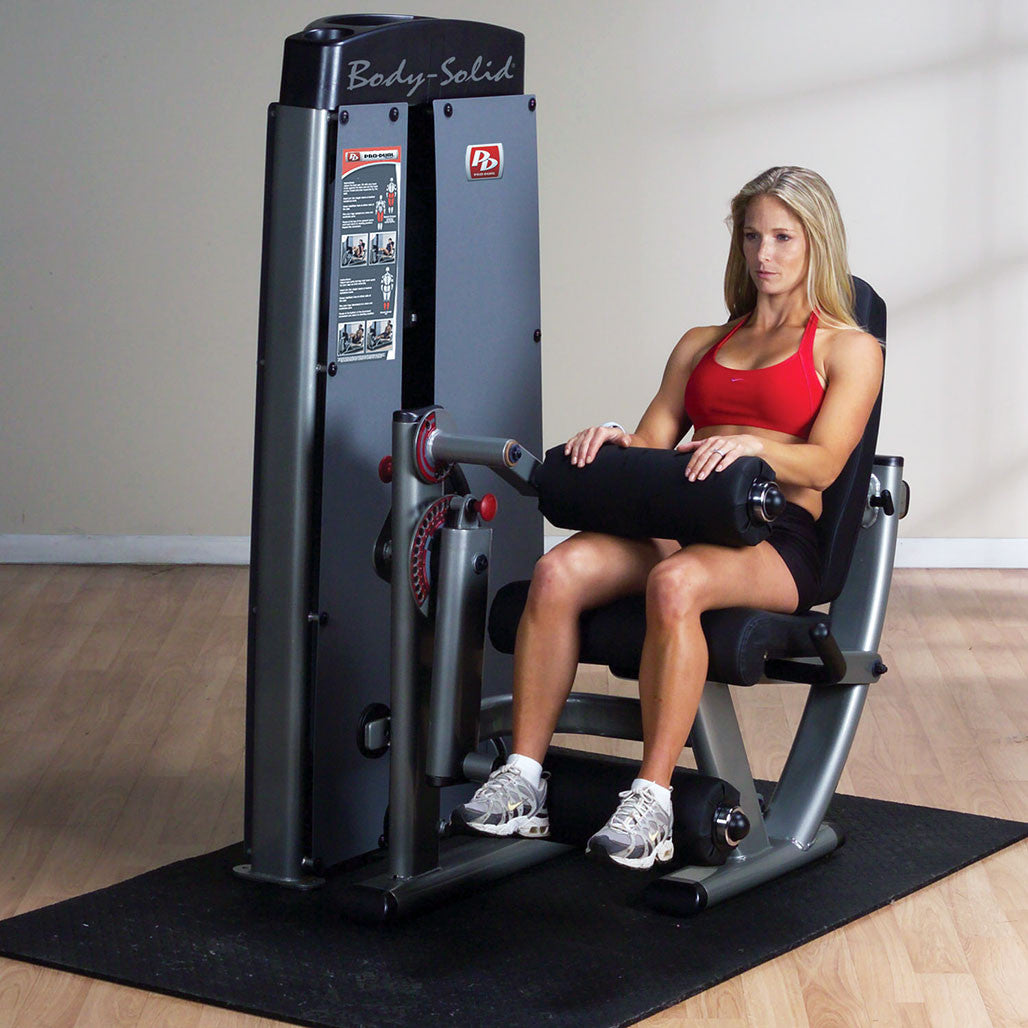

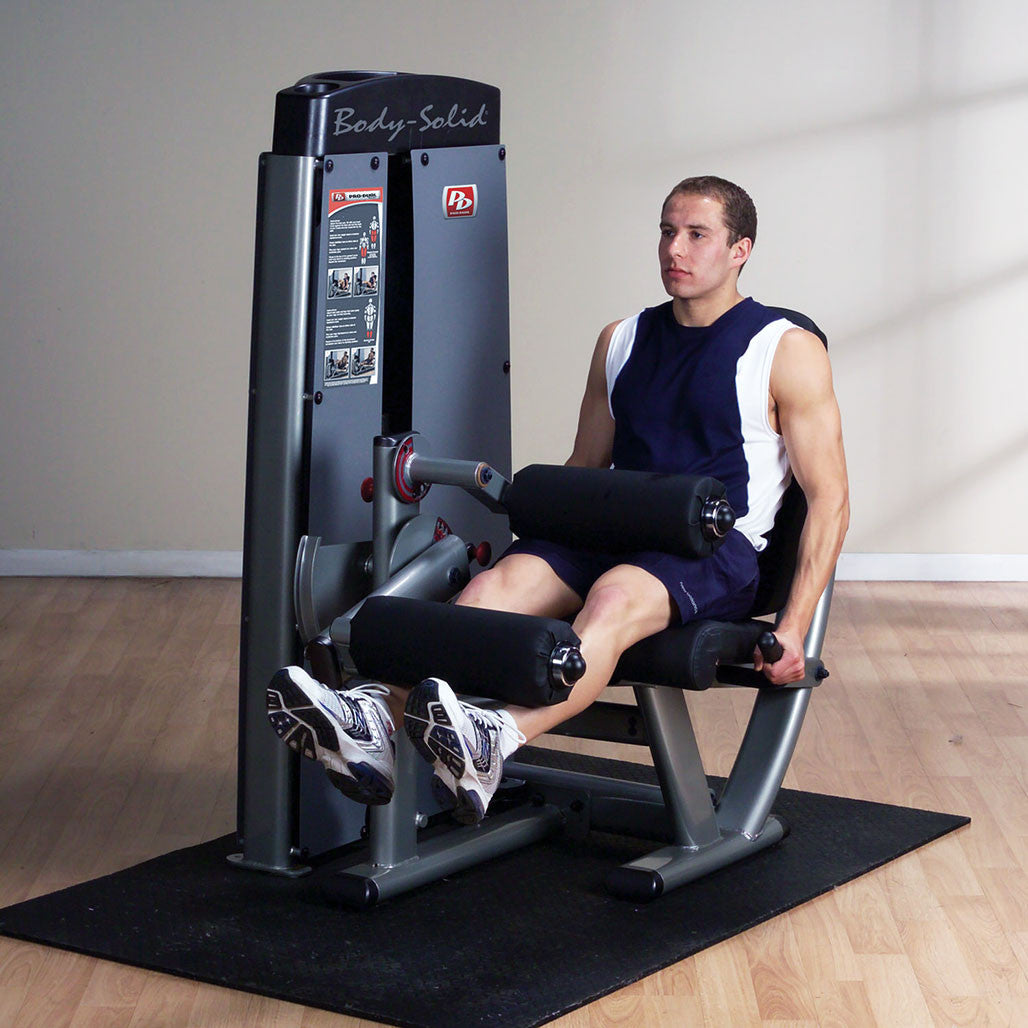

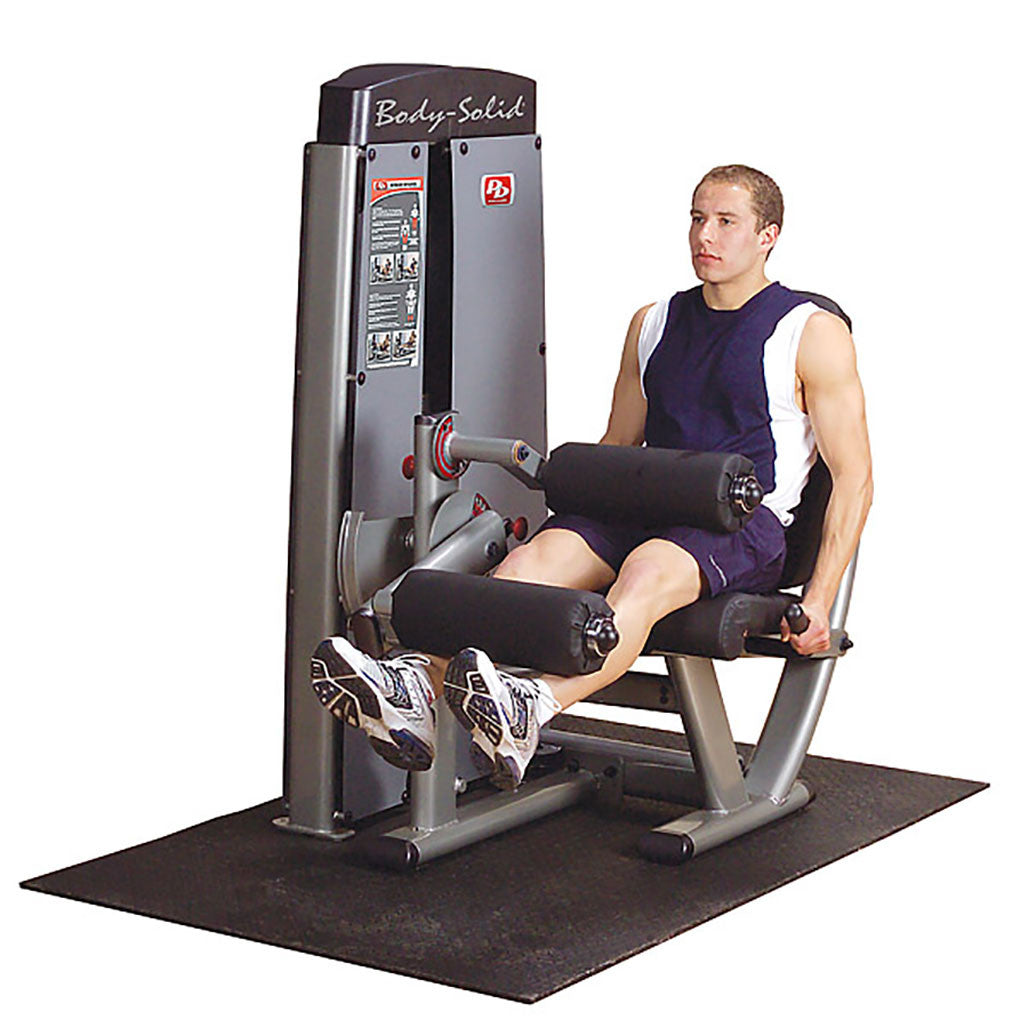

    Leg Extension / Leg Curl Station - Pro Clubline DLEC

    Leg Extension / Leg Curl Station - Pro Clubline DLEC

    Commercial Lifetime Frame Warranty
    The frame and welds are covered for life, with 3 years on pulleys, bearings, hardware, plates, and guide rods, and 1 year on cables, upholstery, and grips under Body-Solid's Full Commercial Warranty.
    Price: $1,850.00
    List Price: $2,195.00
    Price: $1,850.00
    You Save: $345.00 (16%)
    Free freight, curbside delivery with a liftgate, one crate, roughly 506 lbs assembled.
    66" W x 46" D x 62" H - clears most 8-foot ceilings, but confirm your clearance if you're working around ductwork or a drop ceiling.
    View Cart

    Questions before you buy? Call (425) 320-5500 and talk to a lifter, not a script.

    In stock
    • Authorized Body-Solid Dealer
    • Lifetime Frame Warranty
    • Free Freight Shipping
    • 0% Financing

    Leg day stops being the day your knees complain. The DLEC gives you a dedicated leg extension and leg curl station with a pad that adjusts to your leg, not the other way around, and a frame built to sit under commercial gym traffic for years, not just your own.

    Why this one

    • Custom biomechanical seat with a 12-position adjustable back pad and an oversized 9-inch self-adjusting leg pad with 7 adjustment points, so the pad sits where your leg actually is on both curls and extensions.
    • Elliptical cam delivers variable resistance that follows your strength curve through the full range of motion, instead of a straight arc that overloads your knees at the joint's weakest point.
    • 11-gauge steel in 2x2, 2x3, and 2x4 tubing with continuous four-side welds, the same build spec Body-Solid puts under commercial gym floors.
    • Pop-pin adjustable thigh hold-down pad locks your leg in position so the load stays on the muscle instead of your lower back.
    Body-Solid Full Commercial Warranty

    Lifetime on the frame and welds.

    3 years on pulleys, bushings, bearings, hardware, plates, and guide rods.

    1 year on cables, upholstery, and grips (normal wear).

    Pro Clubline DLEC vs. typical commercial-tier competitor
    Component Pro Clubline DLEC Typical competitor
    Frame & welds Lifetime 1-3 years
    Pulleys, bearings, hardware, plates, guide rods 3 years 90 days - 1 year
    Cables, upholstery, grips 1 year 90 days or not covered
    Full specifications
    Seat / back pad Biomechanical seat, 12-position adjustable back pad
    Leg pad Oversized 9" diameter self-adjusting pad, 7 adjustment positions for curls and extensions
    Frame construction 11-gauge, 2"x2", 2"x3", 2"x4" high tensile steel, continuous four-side welds
    Hold-down Pop-pin adjustable thigh hold-down pad
    Resistance path Elliptical cam, variable resistance through full range of motion
    Back pad material Recumbent DuraFirm back pad, adjusts to fit any size user
    Weight stack options Available with 210 lb. or 310 lb. weight stack
    Dimensions 66.00" W x 46.00" D x 62.00" H
    Assembled weight 506 lbs
    Will it fit your space

    Footprint is 66" wide by 46" deep, standing 62" tall. At 62" this clears most standard 8-foot ceilings with room to spare, but measure your actual clearance before it ships, especially if you're finishing out a basement or garage with ductwork or drop ceilings. Leave working room on both sides for the pop-pin hold-down adjustment and for loading the weight stack.

    How it arrives

    Ships free freight, curbside with a liftgate, in one crate at roughly 506 lbs assembled weight. Plan for two people and a dolly to move it from the curb into your space. Full walkthrough of what to expect on delivery day: How Your Gym Arrives.

    Complete the setup

    This is a component addition for your DGYM modular system, built to run alongside it rather than as a stand-alone stack. Beyond the 210 lb. (or optional 310 lb.) weight stack, we don't have additional accessories itemized on the spec sheet for this unit. If you're pairing it with other DGYM stations, contact us first and we'll confirm fit before it ships.

    210 lbs
    Standard Weight Stack
    11-gauge
    Steel Gauge
    506 lbs
    Machine Weight
    LIFETIME
    Frame Warranty
